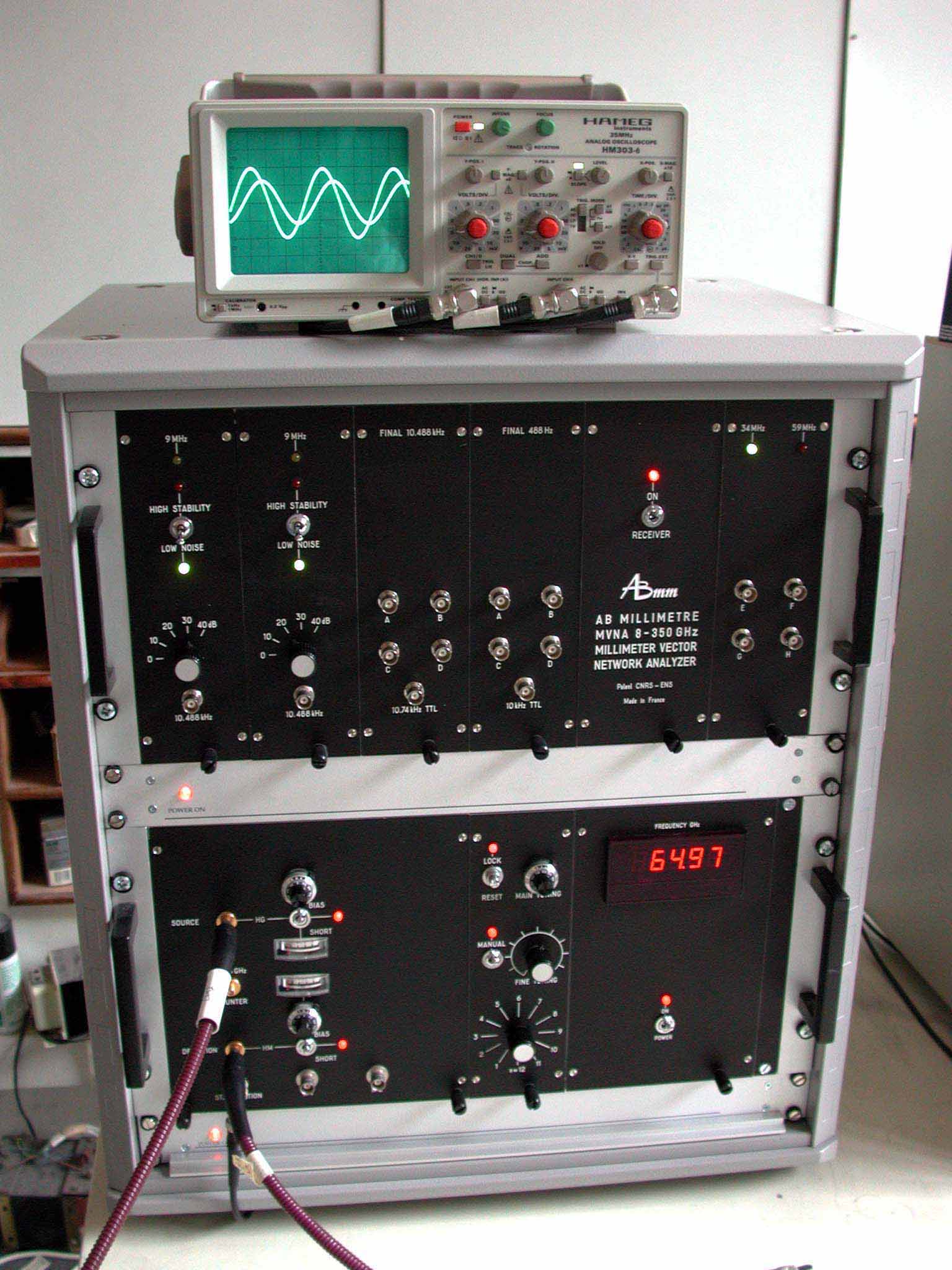

Figure 15: The analyzer MVNA-8-350-1-2.
There is only one detector HM in this system, however the vector receiver
has two channels (visible at the upper left part of the instrument) allowing dual frequency
technique measurements.
