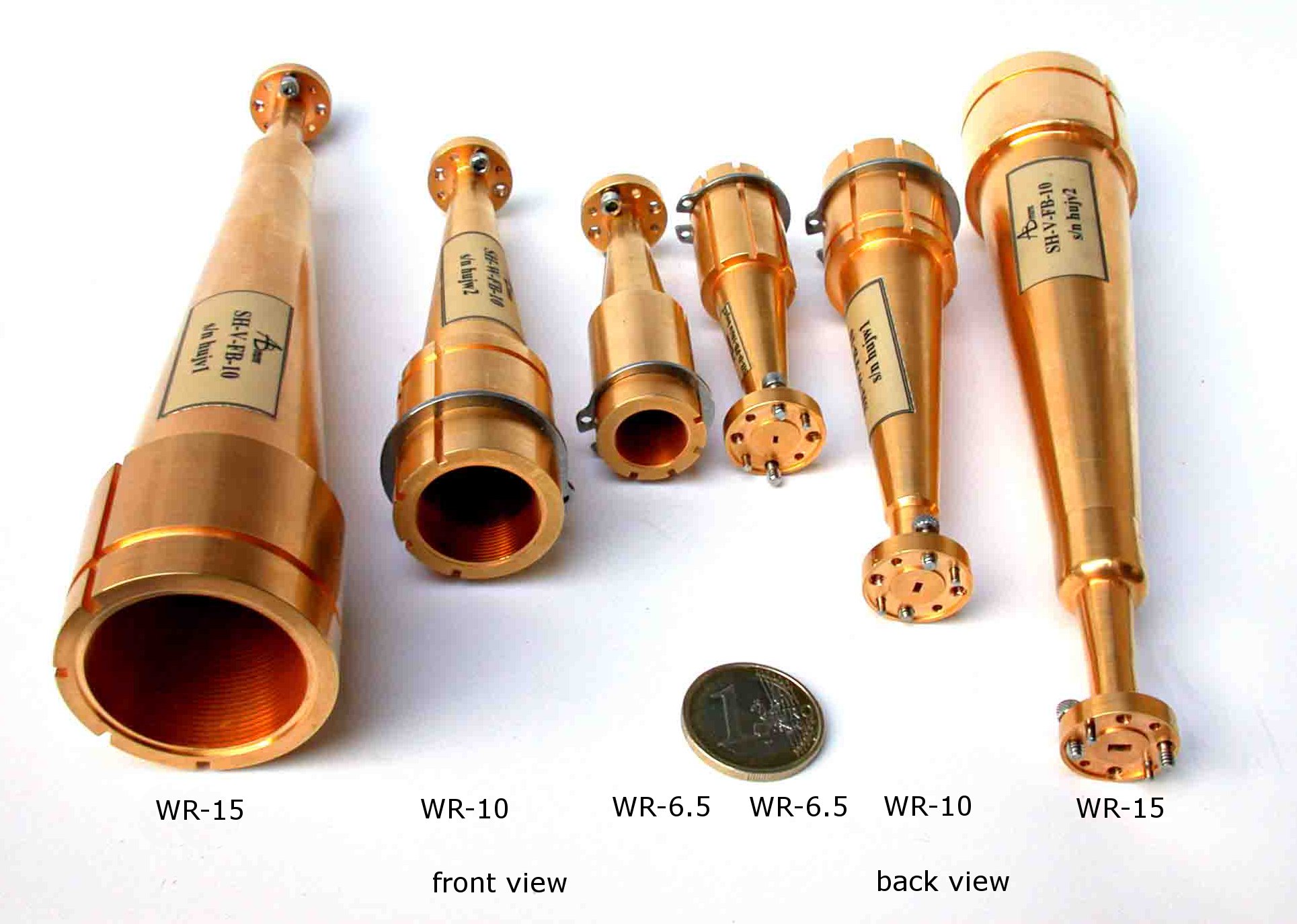

Figure 28: Scalar horns for 44-170 GHz.

Scalar, corrugated horns

Scalar (corrugated) horns shown for the following frequency ranges: The back flange diameter is 19.05 mm and the 1 euro coin (diameter 23.25 mm) gives the scale.
