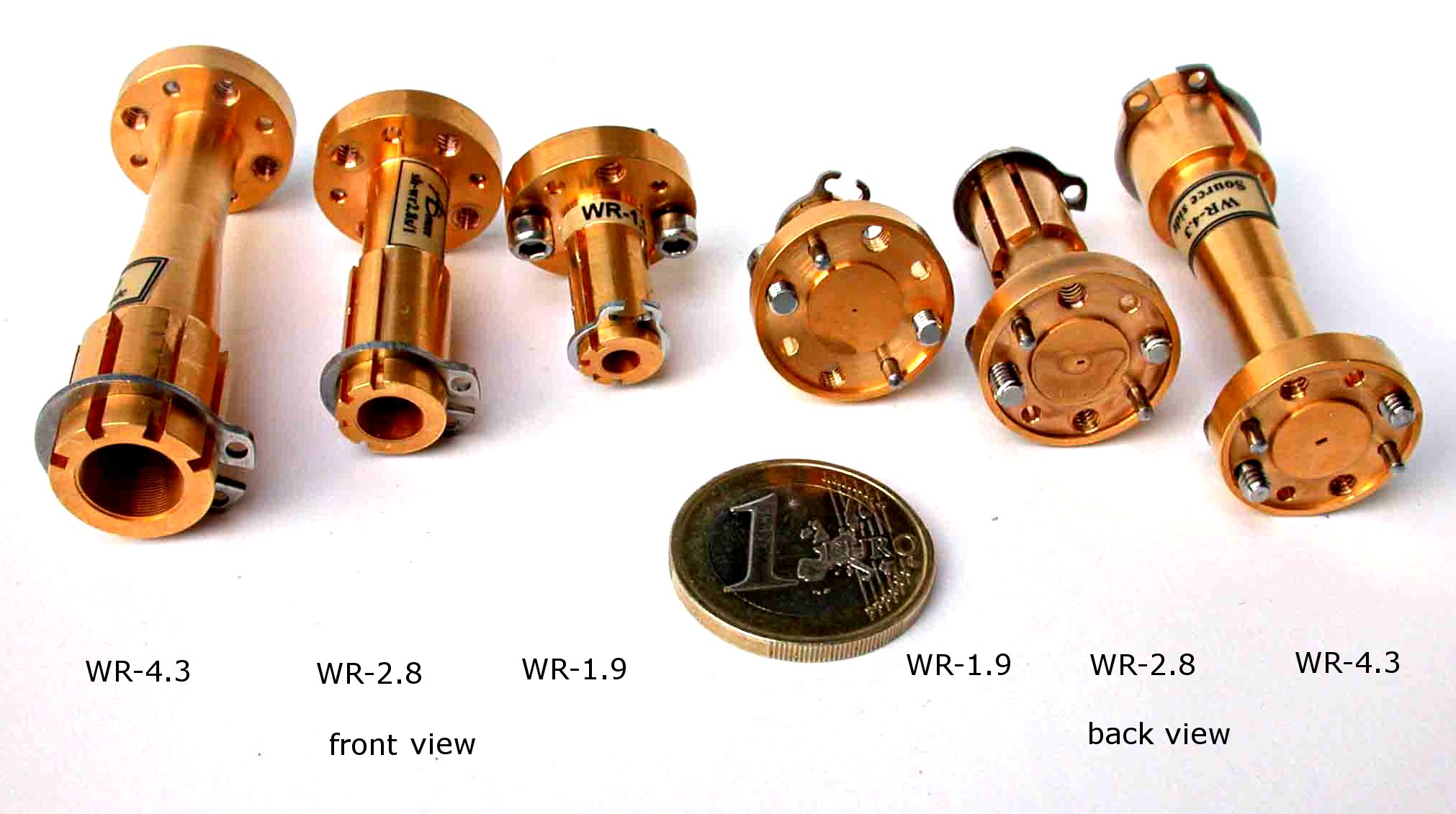

Figure 29: Scalar horns for 170-660 GHz.
These horns cover the following ranges:
- WR-4.3: 170-260 GHz
- WR-2.8: 250-400 GHz
- WR-1.9: 400-660 GHz
The 1 euro coin (diameter 23.25 mm) gives the scale.
