Figure 31

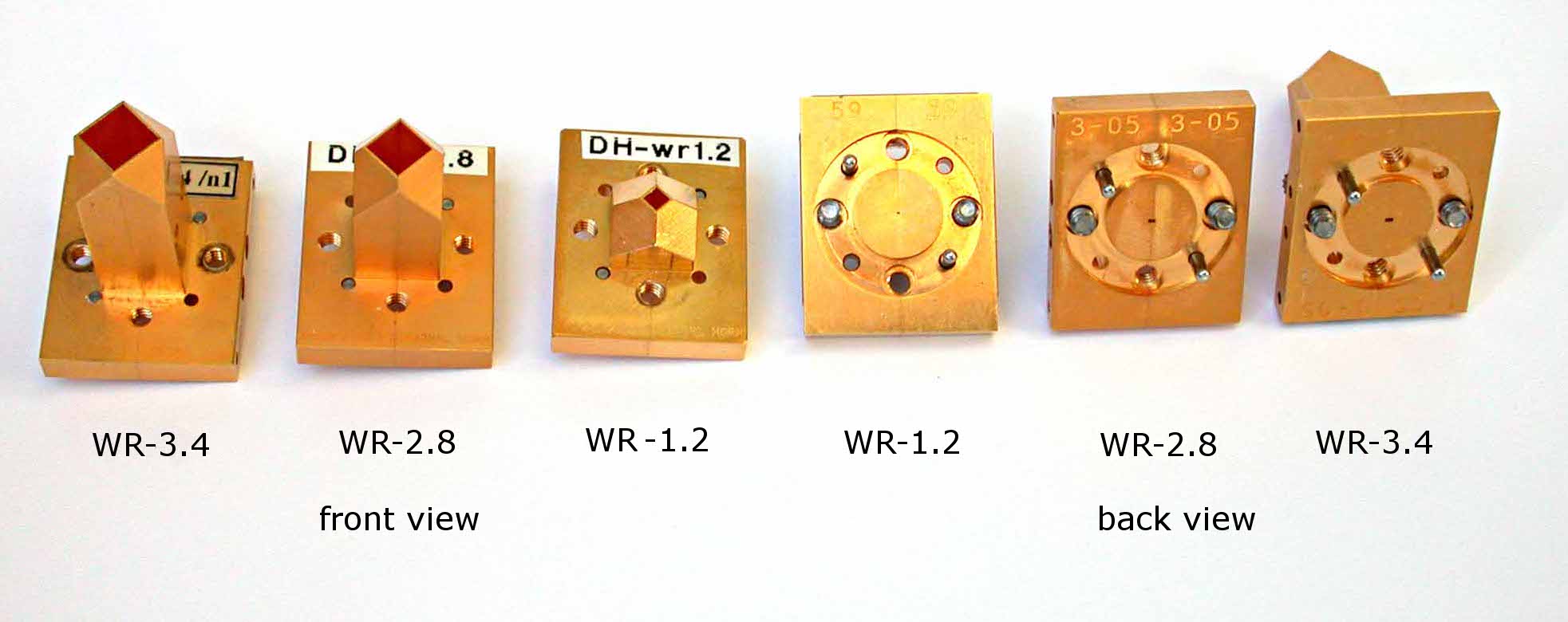

Figure 31: Diagonal Horns from 220 to 1000 GHz.

Diagonal Horns DH for submillimeter and subteraherz spectral range. The waveguide flange size is 28.32 x 25.40 mm, and the external size of the horn is 8.9 x 8.9 mm.

WR-3.4 for the band 220-336 GHz
WR-2.8 for the band 250-400 GHz
WR-1.2 for the band 660-1000 GHz.
