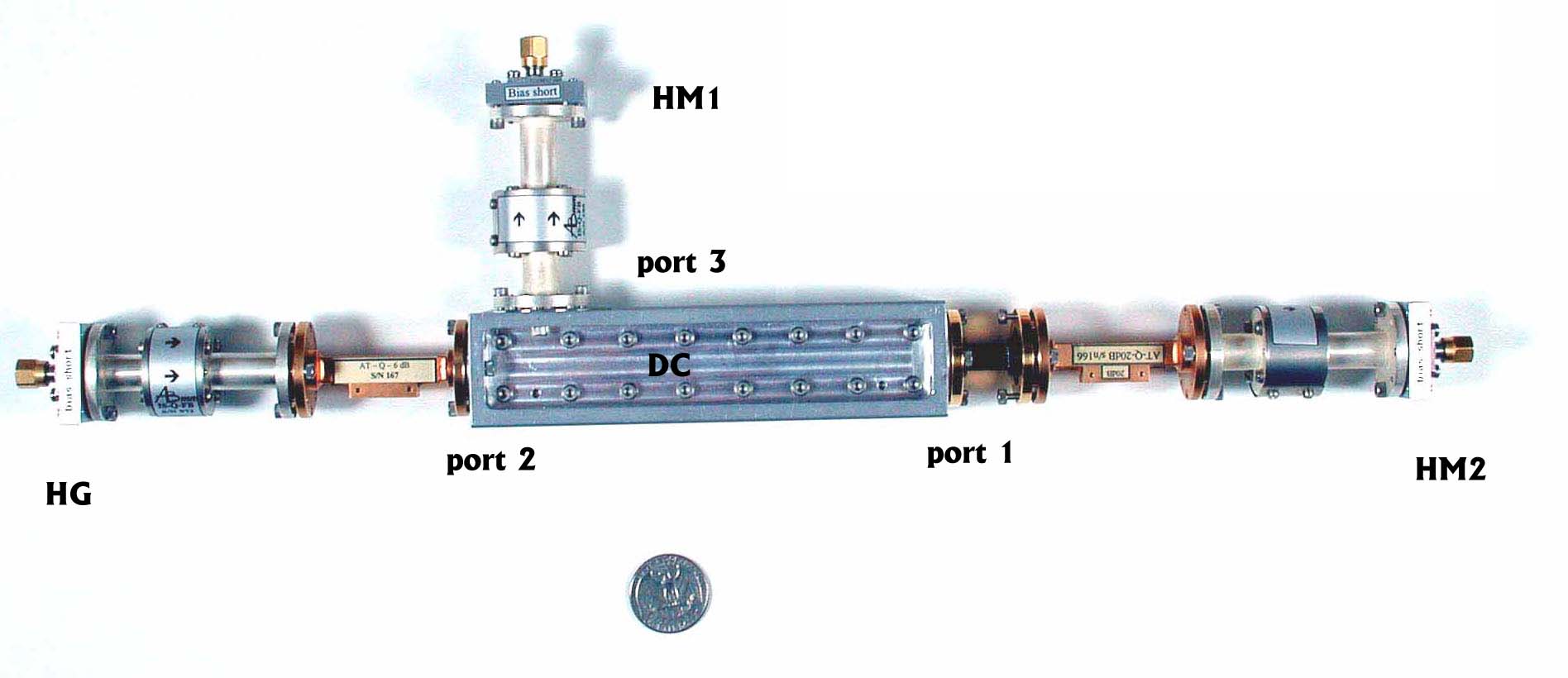

Figure 10: Millimeter heads arrangement in Q-band, for simultaneous detection of reflected (by HM1) and transmitted (by HM2) waves. The simple reflection calibration is made with a fixed short attached at port 1.

Millimeter heads for simultaneous reflection-transmission detection using a directional coupler

The directional coupler DC deviates the reflected wave from port 1 to port 3. The coin (24 mm diameter) gives the size.
