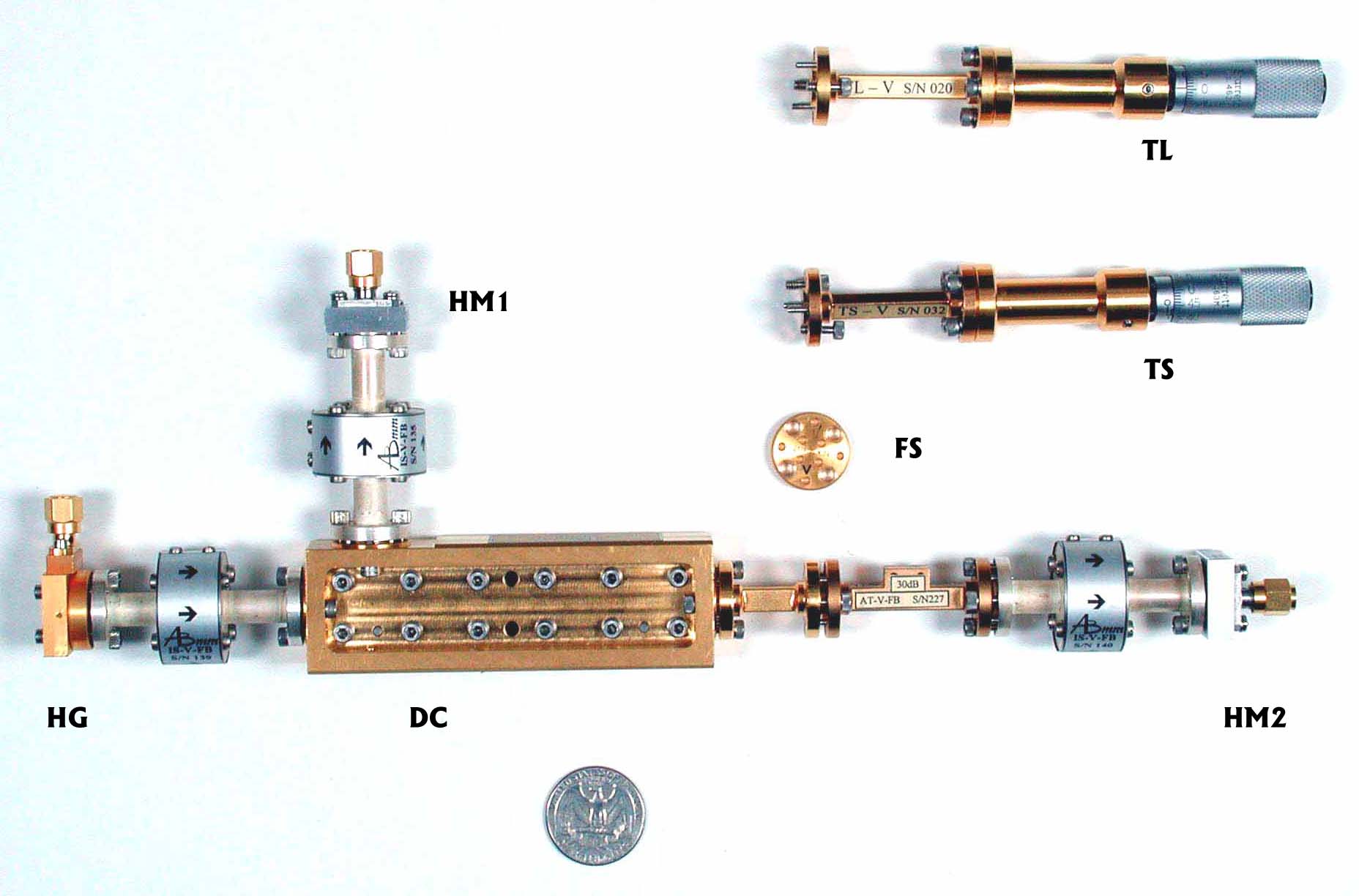

Figure 12: V-Band millimeter heads and accessories for a full reflection calibration.

V-Band millimeter heads

Heads are shown together with directional coupler (DC), fixed short (FS), tunable short (TS), and tunable load (TL) for reflection full error parameter calibration.
