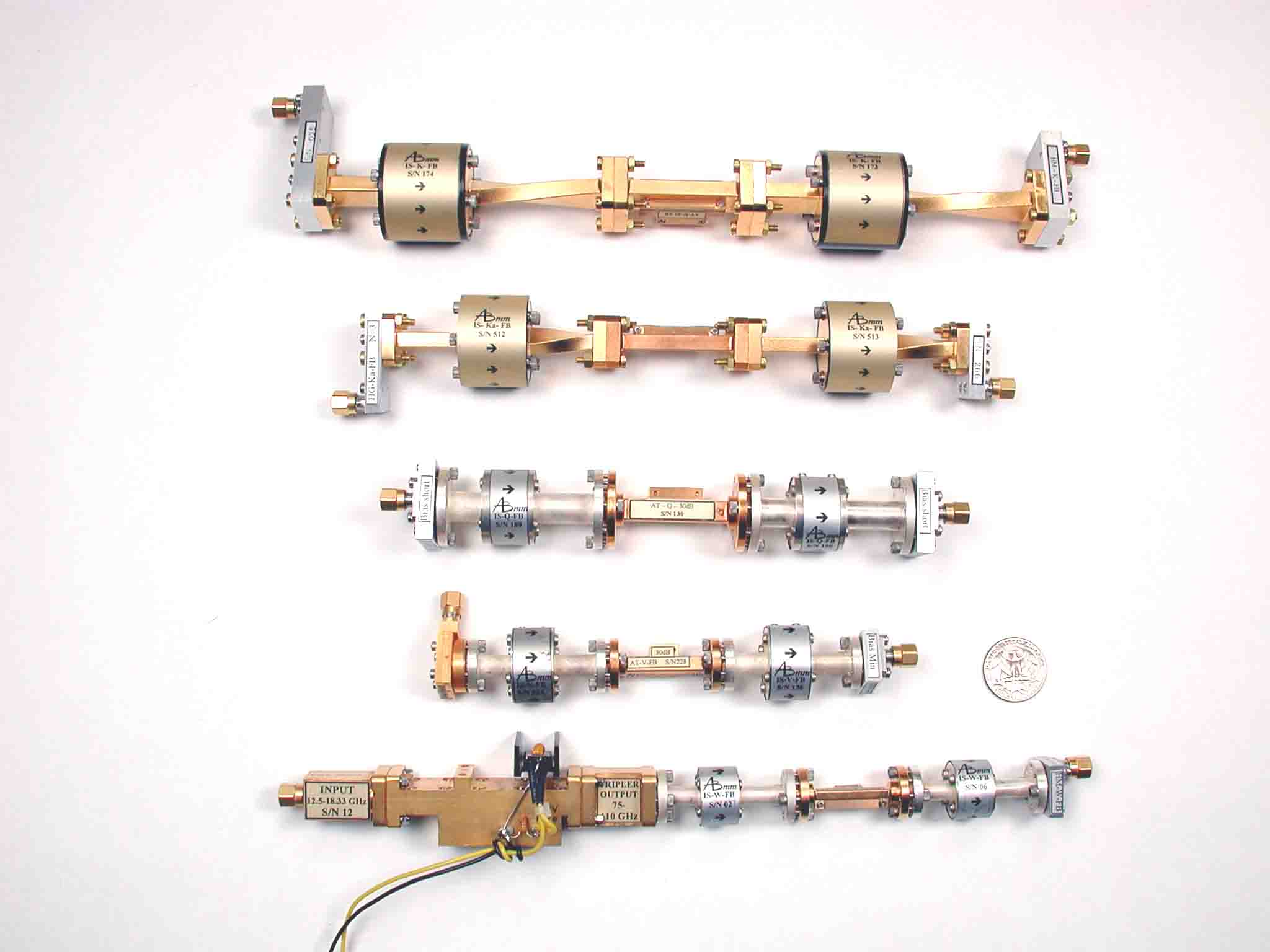

Figure 2: MVNA Flat Broadband (FB) Millimeter Ports for transmission measurements, from K band (top) to W band (bottom).

MVNA Flat Broadband Millimeter Ports

From top to bottom millimeter bands: K, Ka, Q, V, W. The quarter coin (25 US cents), 24 mm diameter gives the scale. The W band source, which is an active multiplier (x6) is now shorter (see  Fig. 17), and more effective, covering frequency range 62-112 GHz with output power 10-40 mW.
