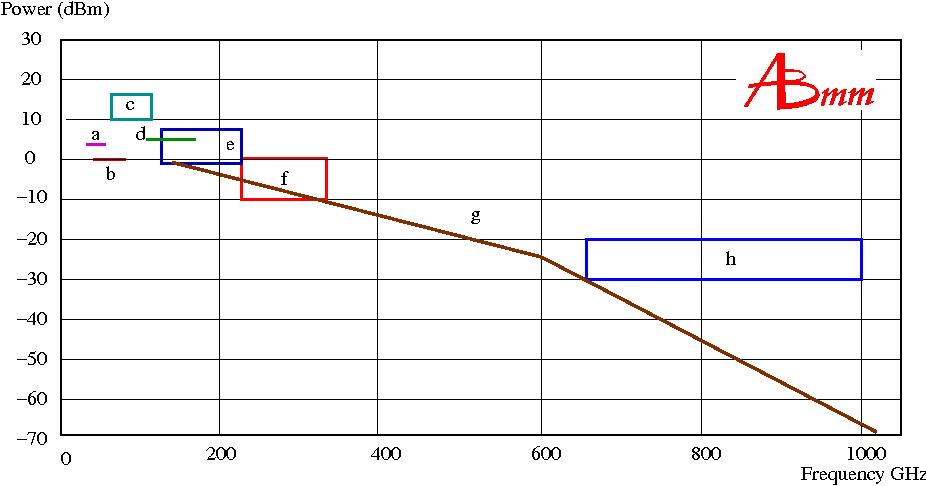

Figure 21: Characterization of MVNA sources.


The typical power of MVNA sources (labeled a-g and described in the table below) is shown from Q-band starting at 29 GHz up to 1 THz.


MVNA submillimeter sources from AB Millimetre

Source Frequency band Waveguide Power (typical)

Catalog type GHz
Catalog type mW
a
HG-Q-FB 29-51
WR-22
1-5
b
HG-V-FB 44-75
WR-15
≤1
c
HG-W-FB-MP     62-112
WR-10
8-40
d
HG-D-FB 110-170
WR-6.5
1-9
e
HG-wr5.1-FB 124-224
WR-5.1
0.2-5
f
HG-wr3.4-FB 220-336
WR-3.4
0.1-1
g
ASA-1-FC 140-220
WR-5.1 0.3-0.7
g
ASA-1-FC 220-336
WR-3.4 0.1-0.3
g
ASA-1-FC
260-400
WR-2.8 0.04-0.2
g
ASA-1-FC
400-660
WR-1.9 0.001-0.04
h
HG-wr1.2-FB 660-1000
WR-1.2 0.001-0.01
